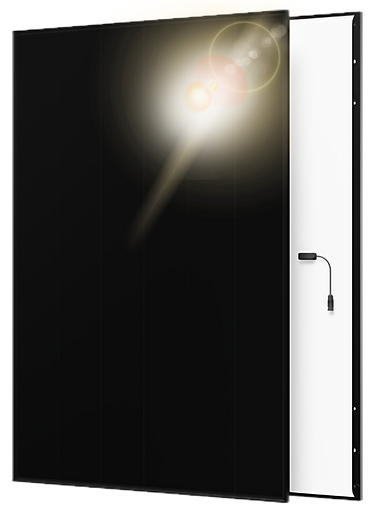

Introducing the AIKO NEOSTAR
475W 3S+54 Mono-Glass Solar Panel
More power from every square metre of roof. The NEOSTAR 3S+54 uses AIKO’s N-type All Back Contact (ABC) cell technology. With no busbars on the front, there is nothing to block sunlight, and the panel has a clean, all-black look.
475W output at 23.8% efficiency in a compact 1762 × 1134 mm frame, so you can get more generation from limited roof space. The 108 half-cell design and three bypass diodes help keep output up when part of the panel is shaded. A low temperature coefficient (-0.26%/°C) means it holds its performance on hot days when other panels fade.
475W
Maximum Power
23.8%
Module Efficiency
N-Type
ABC Technology
25 Years
Product Warranty
30 Years
Performance Warranty
KEY FEATURES
Built for Higher Performance
High Efficiency
23.8% module efficiency for greater yield from limited roof space.
N-Type ABC Technology
All Back Contact cells with no front-side busbars, giving higher output, a better temperature coefficient (-0.26%/°C) and a sleek all-black look.
Excellent Durability
3.2 mm tempered glass and an IP68 junction box, with load ratings of 5400 Pa front and 2400 Pa rear for resistance to wind, snow and harsh weather.
Partial Shading Performance
108 half-cell layout with three bypass diodes limits power loss when part of the panel is shaded.
TECHNICAL SPECIFICATIONS
JAM54D41-460/LR Solar Panel
Maximum Power (Pmax) | 475 W |
Module Efficiency | 23.8% |
Cell Type | N-type ABC (All Back Contact) |
Number of Cells | 108 (6 × 18) |
Module Dimensions | 1762 × 1134 × 30 mm |
Weight | 20.6 kg ±3% |
Open Circuit Voltage (Voc) | 40.80 V |
Short Circuit Current (Isc) | 14.76 A |
Maximum Power Voltage (Vmp) | 34.40 V |
Maximum Power Current (Imp) | 13.81 A |
Temperature Coefficient (Pmax) | -0.26%/°C |
Frame | Black Anodized Aluminium Alloy |
Glass | 3.2 mm Tempered Glass (Mono-Glass) |
Junction Box | IP68, 3 Bypass Diodes |
Connector | MC4 |
Max System Voltage | 1500 V DC |
